Alu-Com glazing system

The Alu-Com glazing system is a complete window system that replaces all exterior wooden window strips.

Alu-Com glazing system

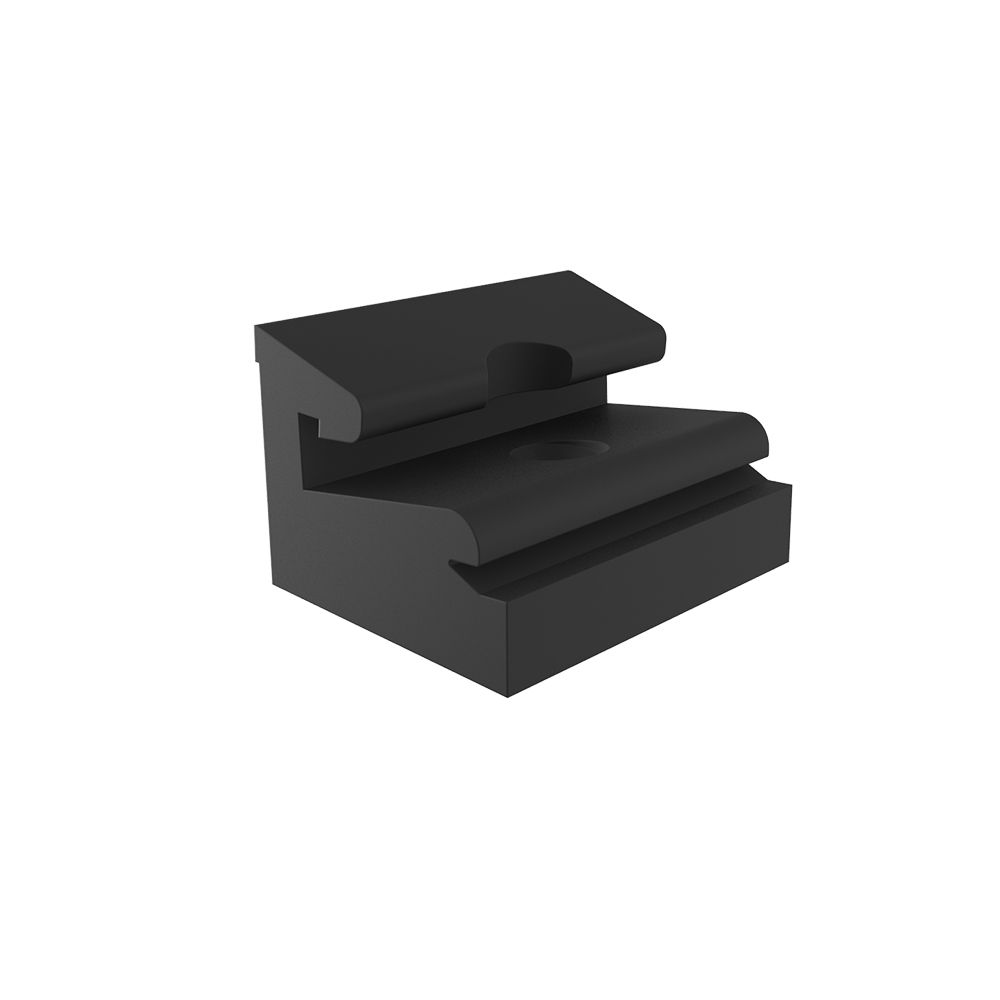

DAFA Alu-Com mounting block

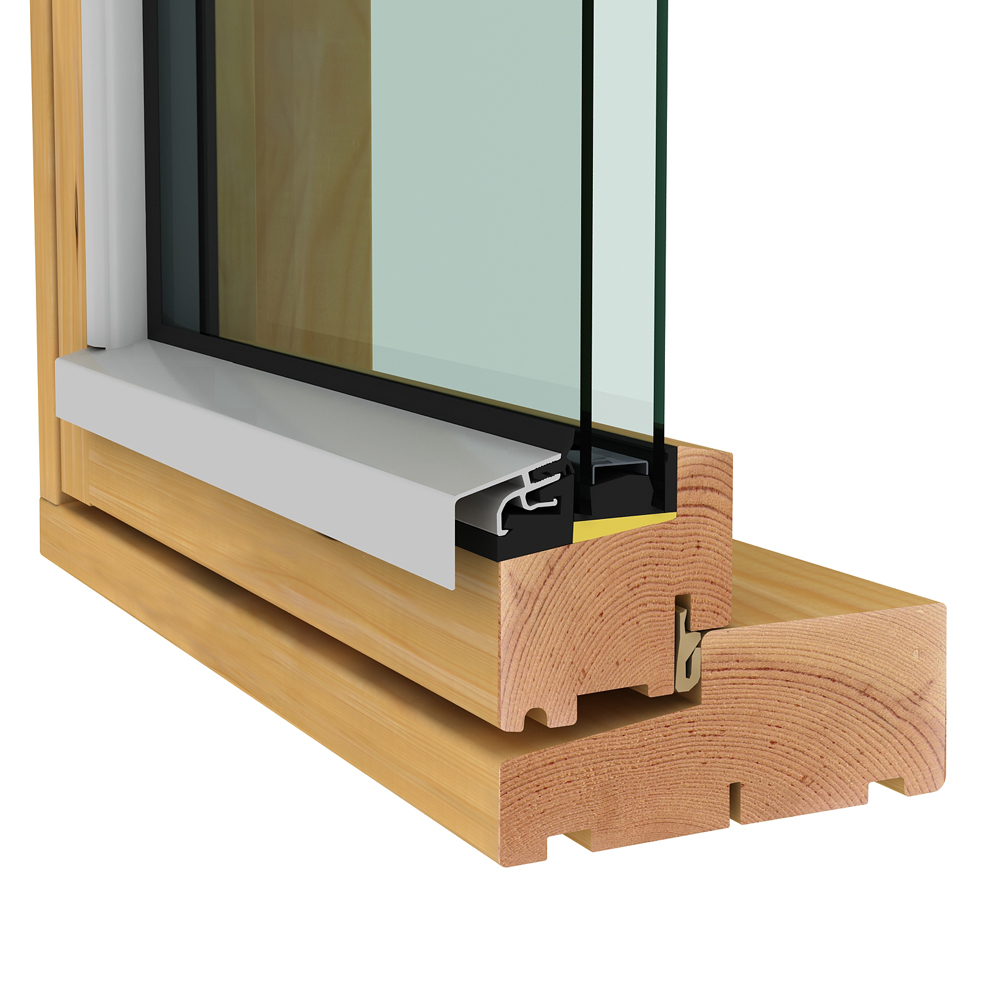

Alu-Com glazing system

The Alu-Com glazing system is a complete window system that replaces all exterior wooden window strips. The system is made of maintenance-free aluminum and helps extend the lifetime of window and door elements.

The Alu-Com glazing system refines the GL system to cover the complete mounting of sealed glazing units. The system is available with an anodized aluminum or white painted (RAL-9010) finish.

Material

Maintenance-free aluminum

Advantages

Used for all types of windows – new and old
Reduces the risk of dry rot, mold, and perforations in sealed glazing units
Used for all types of windows – new and old
No nail holes. Meets DVC’s requirements for affixing glazing strips

DAFA GL glass strip

DAFA GL glass strips are aluminum bottom glass strips that replace the exterior wooden bottom glass strip

Q-Lon sealing strip

Q-Lon sealing strips for windows and doors provide a perfect, long-lasting seal.

Lozaron sealing strips

Lozaron sealing strips for sealing between the sash and frame.

DAFA Kron sealing strips

DAFA Kron sealing strips are self-adhesive glazing tapes specially designed for the installation of insulating glass units.

DAFA Cell sealing strips

DAFA Cell sealing strips are self-adhesive glazing tapes with a flat surface, specially designed for the installation of insulating glass units.

DAFA draught excluders

DAFA draught excluders are used for sealing doors, windows, garage doors, etc. where very low friction is required.

Aqua-Stop door threshold

Aqua-Stop door thresholds meet extreme airtightness requirements for inward and outward opening doors

DAFA EPDM glazing profiles

DAFA's EPDM glazing profiles consist of extruded rubber profiles with a grooved foot for insertion.

DAFA butyl tape for sealed glazing units

Self-adhesive butyl rubber sealing strips, used for mounting sealed glazing units

DAFA 'Tæt' sealing strip

DAFA Tæt sealing strips are used for post-sealing of windows and doors.

Dimensions / Item numbers

16 mm × 16 mm

Anodized

509158010

5705636006154

3647740

16 mm × 16 mm

White RAL-9010

509158012

5705636006178

3818416

16 mm × 23,5 mm VN

Anodized

509157890

5705636006123

3647765

16 mm × 23,5 mm VN

White RAL-9010

509157892

5705636006147

3818424

16 mm × 30 mm VN

Anodized

509158870

5705636006239

3818440

16 mm × 30 mm VN

White RAL-9010

509158872

5705636006253

3818432

16 mm × 36 mm VN

Anodized

509158880

5705636006260

3818473

16 mm × 36 mm VN

White RAL-9010

509158882

5705636006284

3818465

Dimensions / Item numbers Alu-Com accessories

Mounting clip for straight edge fits 16 × 16

100P633C Black

620002901

5705636239088

5175987

Mounting clip for sloping edge fits 16 × 23,5 - 16 × 30 - 16 × 36 VN

15-809 Black

507015809

5705636005775

3647922

Mounting clip for straight edge fits 16 × 23,5 - 16 × 30 - 16 × 36VN

16-057 Grey

507016057

5705636005799

4376471

Mounting clip fits 16 × 23,5 - 16 × 30 - 16 × 36 VN

100P014 Black

507010140

5705636193090

5750360
