DAFA universal cable collar 115

DAFA universal cable collar 115 are used for sealing around cable penetrations through vapor barriers, roofing or wind barriers.

DAFA universal cable collar 115
DAFA universal cable collar 115

DAFA universal cable collar 115

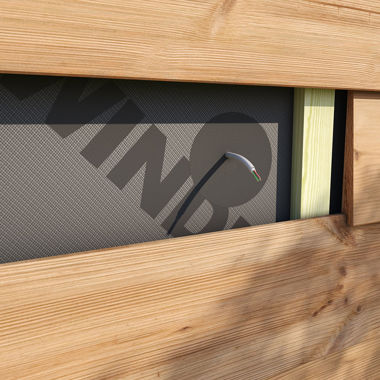

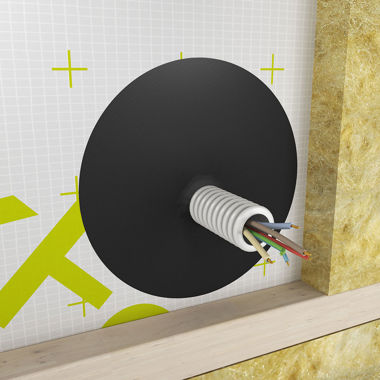

DAFA universal cable collar 115 is a patented, airtight solution around cable penetrations through the roofing membranes, wind, and vapor barriers. The cable collar is entirely windproof, and the simple installation process makes the sealing workflow quick and secure. DAFA universal cable collar 115 is part of the DAFA AirVent System.

Material

DAFA universal cable collar 115 is a black, soft, and flexible EPDM membrane coated with a powerful acrylic adhesive. The 1.2 mm thick EPDM membrane comes with pre-stamped markings. The membrane is permanently UV-resistant, and the membrane and adhesive can withstand temperatures from -40 °C to +80 °C.

Advantages

  • DAFA universal cable collar 115 is included in the Nordic Ecolabelling database of construction products that can be used in Swan-labelled buildings.
  • Patented solution
  • Saves energy due to airtight penetrations/joins
  • A single flexible gasket for all standard cable dimensions
  • Simple, fast, and secure installation
  • No special tools are required
  • Installed without requiring subsequent sealing, gluing, caulking, etc.
DAFA universal cable collar 115
DAFA universal cable collar 115
DAFA universal cable collar 115
DAFA Cable Collar 115 installation video

DAFA Cable Collar 115 installation video

Watch our installation video here

Dimensions / Item numbers

Download product sheet for further information
