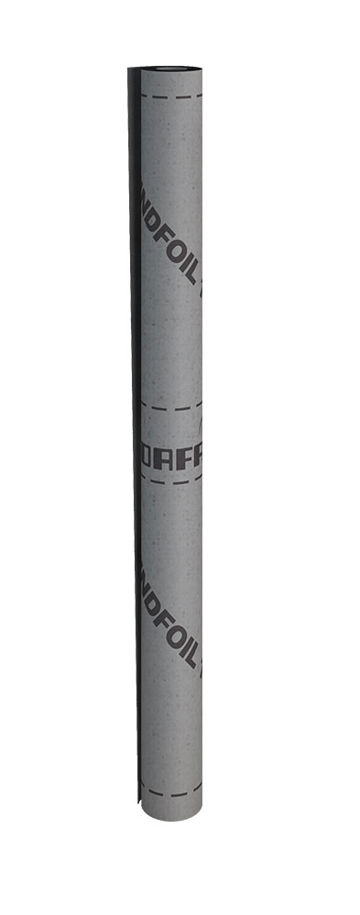

DAFA WindFoil 130 wind barrier

DAFA WindFoil 130 wind barrier is a 3.05 m wide strong, 3-layer vapor-permeable membrane used in lightweight outer wall structures.

DAFA WindFoil 130 wind barrier

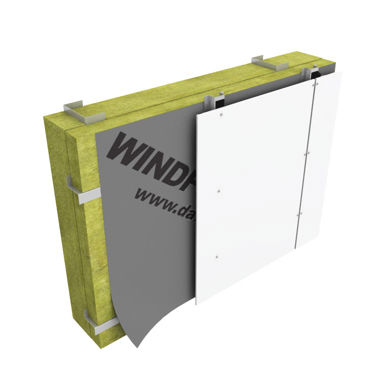

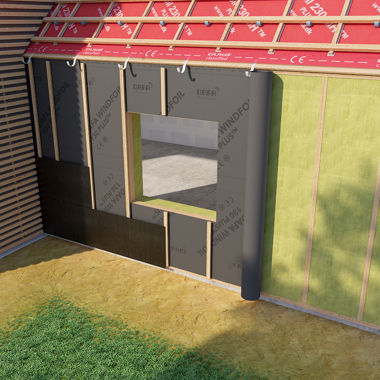

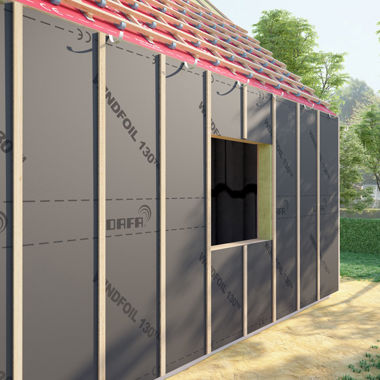

DAFA WindFoil 130 is a wind barrier in ventilated, lightweight outer wall cladding. With a width of 3.05 meters, it is now possible to install the wind barrier at full wall height without having to tape an overlap. It ensures an airtight wind barrier and rapid, time-saving installation. DAFA WindFoil 130 may only be used behind cladding to prevent UV light penetration.

Material

DAFA WindFoil 130 is made of 3-layer foil with high tear strength and a waterproof special coating with UV and IR stabilizers that inhibit aging. It has dotted lines on both sides, marking 150 mm of overlap. The membrane is vapor-permeable with an Sd value of approximately 0.02 m. The Sd value must be multiplied by a factor of roughly 5.7 to obtain the Z value.

Advantages

DAFA WindFoil 130 is a declared product in the Supply Chain Declaration Portal for New Construction Generation 4
3.05 m wide
Have dotted lines on both sides marking 150 mm of overlap
Rapid and time-saving installation
High tensile and tear strength
